Exploring The World Of Mount Points In Linux Disk Management

Table of Contents show

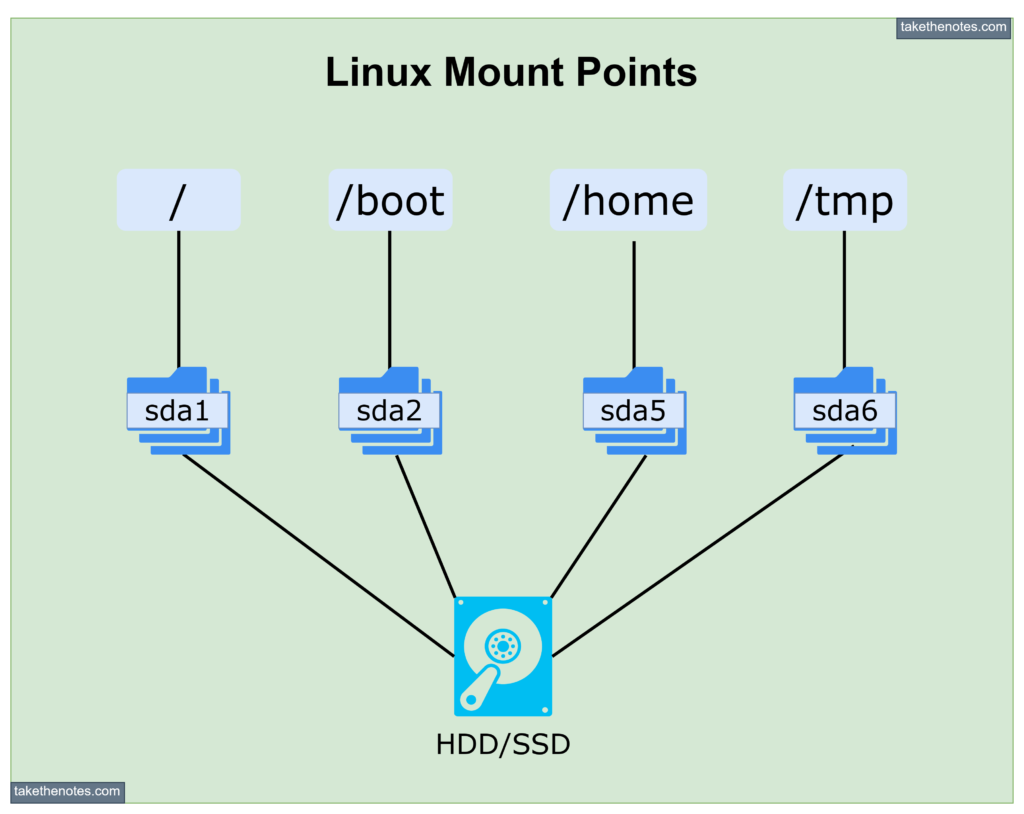

The mount point refers to the location in the file system hierarchy where a file system is attached to. In Linux, each file system is represented as a separate entity and can be mounted at a specific mount point in the file system hierarchy. This allows different file systems to be used and managed separately, even though they are all part of the same file system.

In Linux some of the directories that might have their own mount points are:

Directory	Description
/	The root directory of the file system hierarchy.
/boot	Contains boot loader files and the Linux kernel.
/home	Contains the home directories for users.
/mnt	A temporary mount point for mounting file systems temporarily.
/media	Contains mount points for removable media devices such as CDs and DVDs.
/srv	Contains data for services such as HTTP, FTP, and email.
/tmp	A temporary directory for storing files that are needed only temporarily.

These directories are the default directories in Linux, but you can create your own mount points and mount file systems at any directory you choose. The mount command is used to attach a file system to a specified mount point in the file system hierarchy, and the unmount command is used to detach a file system from its mount point. Lets these commands them in detail.

mount

The mount command is used to attach a file system to a specified mount point in the file system hierarchy. Here are some of the most commonly used option flags for the mount command:

Option	Description
`-t <file_system_type>`	Specifies the file system type of the device to be mounted.
`-o <options>`	Specifies mount options for the file system.
`-r`	Mounts the file system in read-only mode.
`-w`	Mounts the file system in read-write mode.
`-v`	Runs the command in verbose mode, printing information about the mount process.
`-a`	Mounts all file systems listed in the `/etc/fstab` file.

mount: most commonly used options

Here is an example of how to use the mount command:

mount -t ext4 /dev/sda1 /mnt/data

In this example, the mount command is being used to mount the /dev/sda1 partition as an ext4 file system at the /mnt/data mount point. The -t option is used to specify the file system type, and the /dev/sda1 and /mnt/data arguments specify the device and mount point, respectively.

unmount

The unmount command is used to detach a file system from its mount point. Here are some of the most commonly used option flags for the unmount command:

Option	Description
`-l`	Lazy unmount. Detaches the file system from its mount point, but keeps it mounted internally.
`-f`	Forces the unmount, even if the file system is busy.
`-v`	Runs the command in verbose mode, printing information about the unmount process.

unmount: most commonly used options

Here is an example of how to use the unmount command:

unmount /mnt/data

In this example, the unmount command is being used to detach the file system mounted at /mnt/data. The argument /mnt/data specifies the mount point of the file system that is to be unmounted.

/etc/fstab

The file /etc/fstab is a configuration file that contains information about file systems that are to be mounted automatically at boot time. This file lists all the file systems that are to be mounted, along with the mount options and other information such as the mount point, file system type, and device name.

Each line in /etc/fstab represents a file system and its associated information, separated by whitespace. Here is an example of a line in /etc/fstab:

/dev/sda1 /mnt/data ext4 defaults 0 0

In this example, the file system located at /dev/sda1 is to be mounted at the mount point /mnt/data, using the file system type ext4 and with the default mount options. The last two fields, 0 0, represent the dump and pass fields, respectively. These fields are used by the dump command, which is a backup utility that is not commonly used.

The /etc/fstab file is read by the mount command when the system boots. The mount command uses the information in /etc/fstab to mount all file systems listed in the file automatically, without the need for manual intervention. This makes it convenient for users, as all required file systems are automatically mounted and ready for use when the system boots up.

swap

Swap is a special type of file system that provides virtual memory for the system. Virtual memory is a feature that allows the system to temporarily use disk space as an extension of physical memory (RAM) to accommodate large amounts of data.

Swap can be created as either a separate partition or as a swap file. The most common way to create a swap partition is during the installation of the operating system.

Here are some commonly used options for the swapon command, which is used to enable swap space:

Option	Description
-p, –priority	Specifies the priority of the swap area. Higher priority swap areas are used before lower priority areas.
-s, –show	Displays the summary information about the swap areas.
-h, –help	Displays help information for the command.

most commonly used options for enabling swap

Here are some commonly used options for the swapoff command, which is used to disable swap space:

Option	Description
-a, –all	Disables all swap areas.
-v, –verbose	Provides verbose output.
-h, –help	Displays help information for the command.

most commonly used options for disabling swap

sshfs

sshfs is a file system client for mounting remote file systems over an SSH connection. It allows you to access files on a remote file system as if they were stored locally on your own file system. This can be useful for accessing remote file systems for backup, collaboration, or other purposes. Here’s an example of how you can use sshfs to mount a remote file system:

sshfs user@remote:/path/to/remote/dir /path/to/local/mountpoint

In this example, user@remote is the remote user and host, and /path/to/remote/dir is the path to the remote directory you want to mount. The /path/to/local/mountpoint is the local directory where the remote file system will be mounted.

Here are some commonly used options for the sshfs command:

Option	Description
-C	Enables compression.
-o ssh_command	Specifies an alternate ssh command to use for the connection.
-o reconnect	Enables automatic reconnection on network failure.
-o password_stdin	Reads the password from standard input.

sshfs: most commonly used options
